Visualizing Pulses Tutorial

In this tutorial, we will walk through using the NSDF CLI, and the NSDF Dark Matter Library to visualize pulses from events in a dataset.

Virtual Environment

To begin, make sure you have Python 3.10 or higher installed on your machine. You can download it from the official website: Install Python.

In this guide, we will be using uv to manage a virtual environment. You can install uv by following this installation guide.

Note

If you prefer, you can use a different environment manager such as conda or Python's built-in venv

Setting up the environment

First, we need to set up our virtual environment, and install our dependencies. Here’s how:

uv (recommended)CondaPython venv

uv (recommended)

uv venv dm_env --python 3.10

Conda

conda create -n dm_env python=3.10

Python venv

python -m venv dm_env

Next, activate the environment:

uv (recommended)CondaPython venv

uv (recommended)

source dm_env/bin/activate

Conda

conda activate dm_env

Python venv

source dm_env/bin/activate

Finally, install the dependencies:

uv (recommended)CondaPython venv

uv (recommended)

uv pip install nsdf-dark-matter-cli==0.3.1 nsdf-dark-matter==0.3.0 matplotlib

Conda

conda activate dm_env

Python venv

source dm_env/bin/activate

Completed Setting the Environment

We have successfully set up the environment and installed the necessary dependencies.

Visualizing Pulses

A typical workflow to visualize pulses consists of three steps. A high-level overview looks like this:

flowchart TB
    subgraph VPFW[Visualize Pulses Workflow]
        A[**NSDF CLI**<br/>Download Dataset] --> B[**NSDF Library**<br/>Extract Channels]
        B --> C[**Plotting Library Matplolib**<br/>Visualize Pulses]
    end

1. Downloading a Dataset

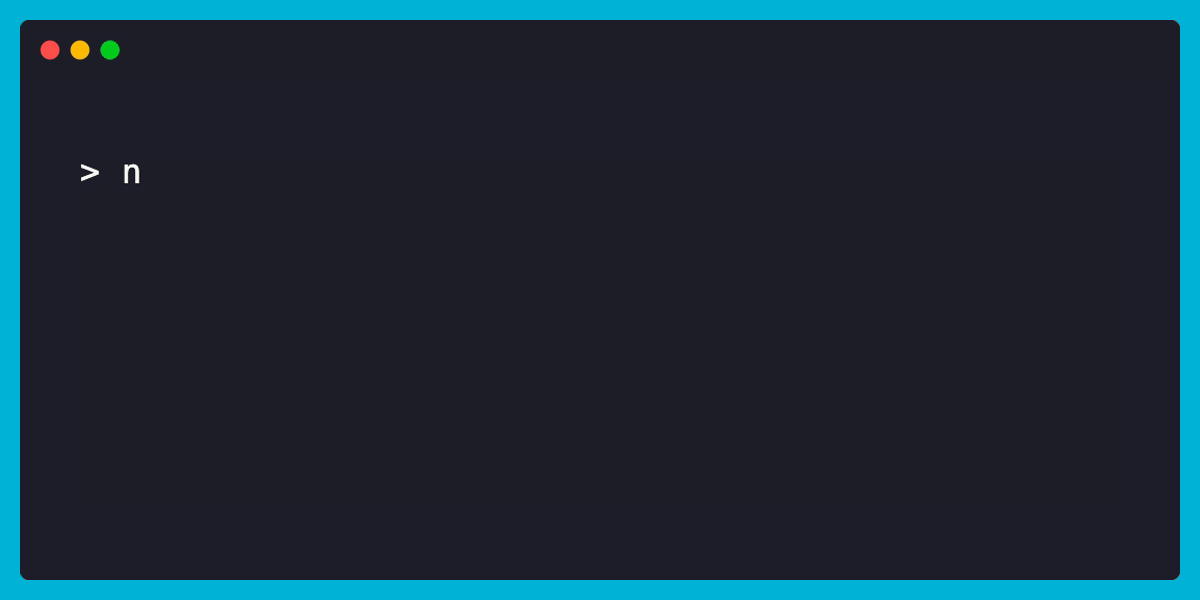

First, fetch a dataset of interest using the NSDF CLI:

nsdf-cli download 07180808_1558_F0003

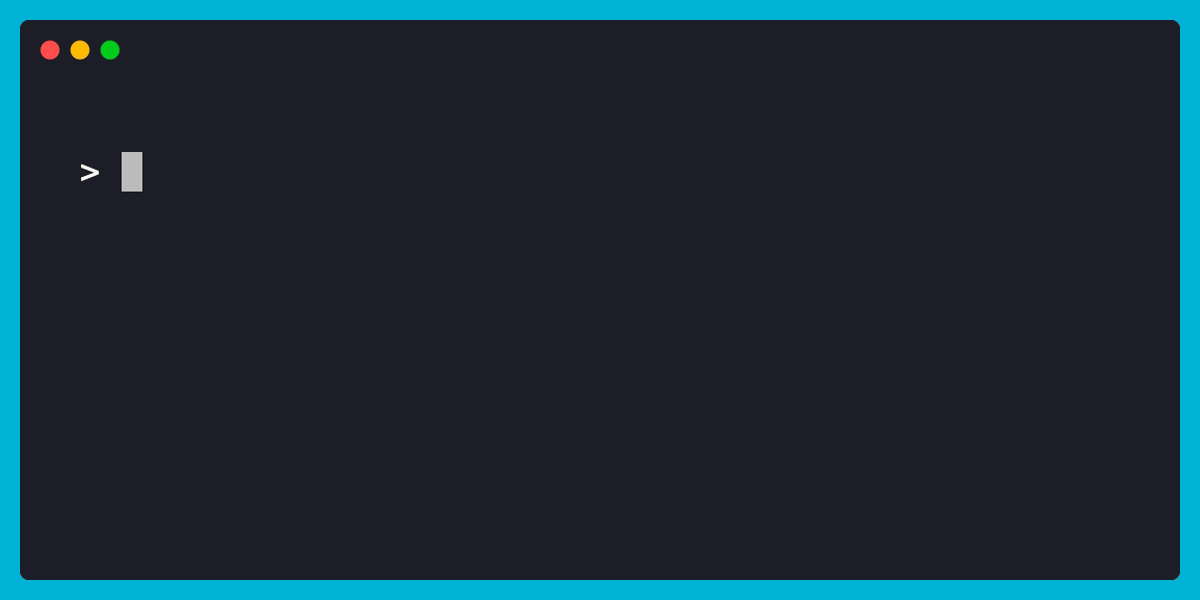

After downloading, the dataset files are stored in the idx directory.

ls idx

For a more detailed guide on the CLI, see the NSDF CLI guide.

Completed Downloading a Dataset

We have successfully donwloaded a dataset, let's move on to see how we can use the library to manipulate the data.

2. Extracting Channels

Now, we will create a simple program to extract all the channels of a given event. The typical hierarchy of data is given as follows:

flowchart LR
    A[**Events**] --> B[**Detectors**]
    B --> C[**Channels/Pulses Data**]

R76/R68 Data Hierarchy

Let's keep this hierarchy in mind as we code our program.

First, import the necessary libraries and load the dataset:

from nsdf_dark_matter.idx import load_all_data
import matplotlib.pyplot as plt

def main():
    # specify the path to the dataset you want to use
    cdms = load_all_data('./idx/07180808_1558_F0003')

Next, let's retrieve an event ID with the get_event_ids method. This is the first primitive in the data hierarchy. In this case we will pick the first event.

# get_event_ids retrieves a list of all the event ids, we pick the very first one
event_id = cdms.get_event_ids()[0] # event_id: 10000

We can now move on to retrieving the detector from the event. To do so, we pass in our event_id into the get_detectors_by_event method.

detector_ids = cdms.get_detectors_by_event(event_id) # ['10000_0_Phonon_4096', '10000_2_Phonon_4096']

A typical detector id looks like this 10000_0_Phonon_4096, let's explain what each of these mean:

• 10000 (event id): This is the event id that this detector is part of.
• 0 (detector number): This is the detector number, depending on the number of detectors set you might see (0,1,2,3,4,5,6, etc)
• Phonon (type): This is the type of channel, the entire dataset is Phonon type.
• 4096 (Number of samples per channel): This is the number of samples per channel in the detector.

Note

Detector numbers are consistent across events. For example:

• 10000_0_Phonon_4096 and 10000_1_Phonon_4096 refer to the same event, and different detectors.
• 10000_0_Phonon_4096 and 10001_0_Phonon_4096 refer to the same detector number for different events.
• 10000_0_Phonon_4096 and 10001_1_Phonon_4096 refer to different detectors and different events.

Let's get aggregate our channel data for the entire event in one list. We iterate through each of our detector ids and retrieve the channel data with get_detector_channels data.

# Extracting all the channel data from each detector
channel_data = []
for det in detector_ids:
    channel_data.append(cdms.get_detector_channels(det))

Completed Extracting Event Channels

We have successfully used the nsdf dark matter library to extract all the channels of an event.

3. Visualizing Pulses

Finally, we can use matplotlib to visualize the pulses.

# Visualizing the pulses
plt.figure(figsize=(12, 6))
plt.title(f"Visualizing 07180808_1558_F0003, Event: {event_id}", fontweight="bold")
plt.xlabel("Time (20ns intervals)")
plt.ylabel("Amplitude (ADC Channels)")

cmap = plt.get_cmap('Set1')
for i, det_channels in enumerate(channel_data):
    for row in range(det_channels.shape[0]):
        label = f"D{detector_ids[i].split('_')[1]}" if row == 0 else None
        plt.plot(det_channels[row], color=cmap(i), label=label)

plt.legend()
plt.show()

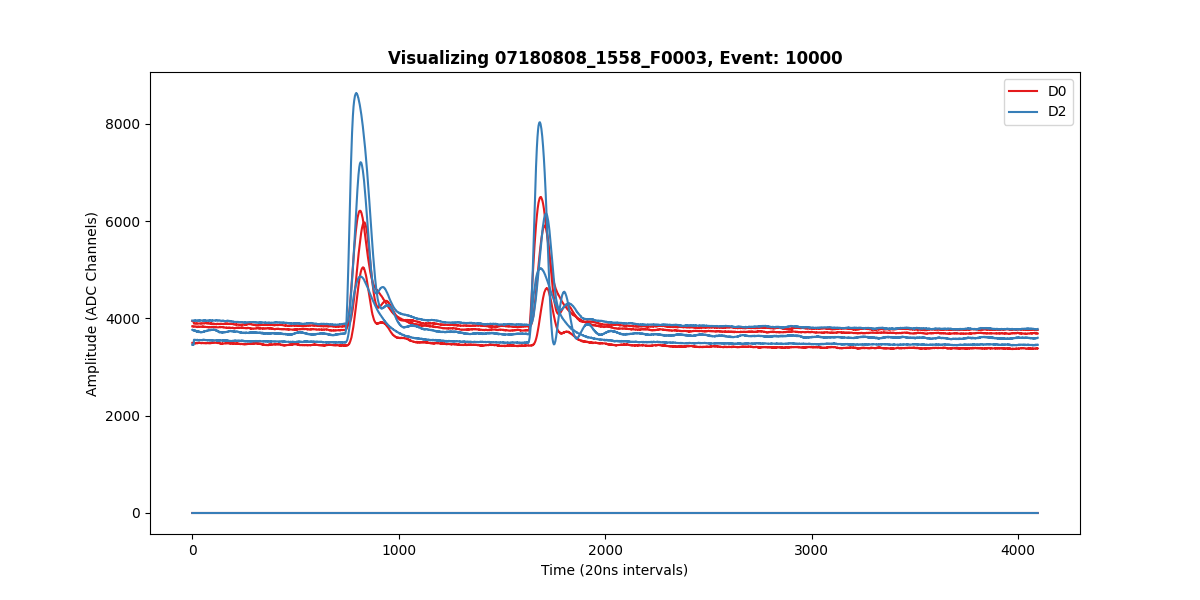

We get the following plot:

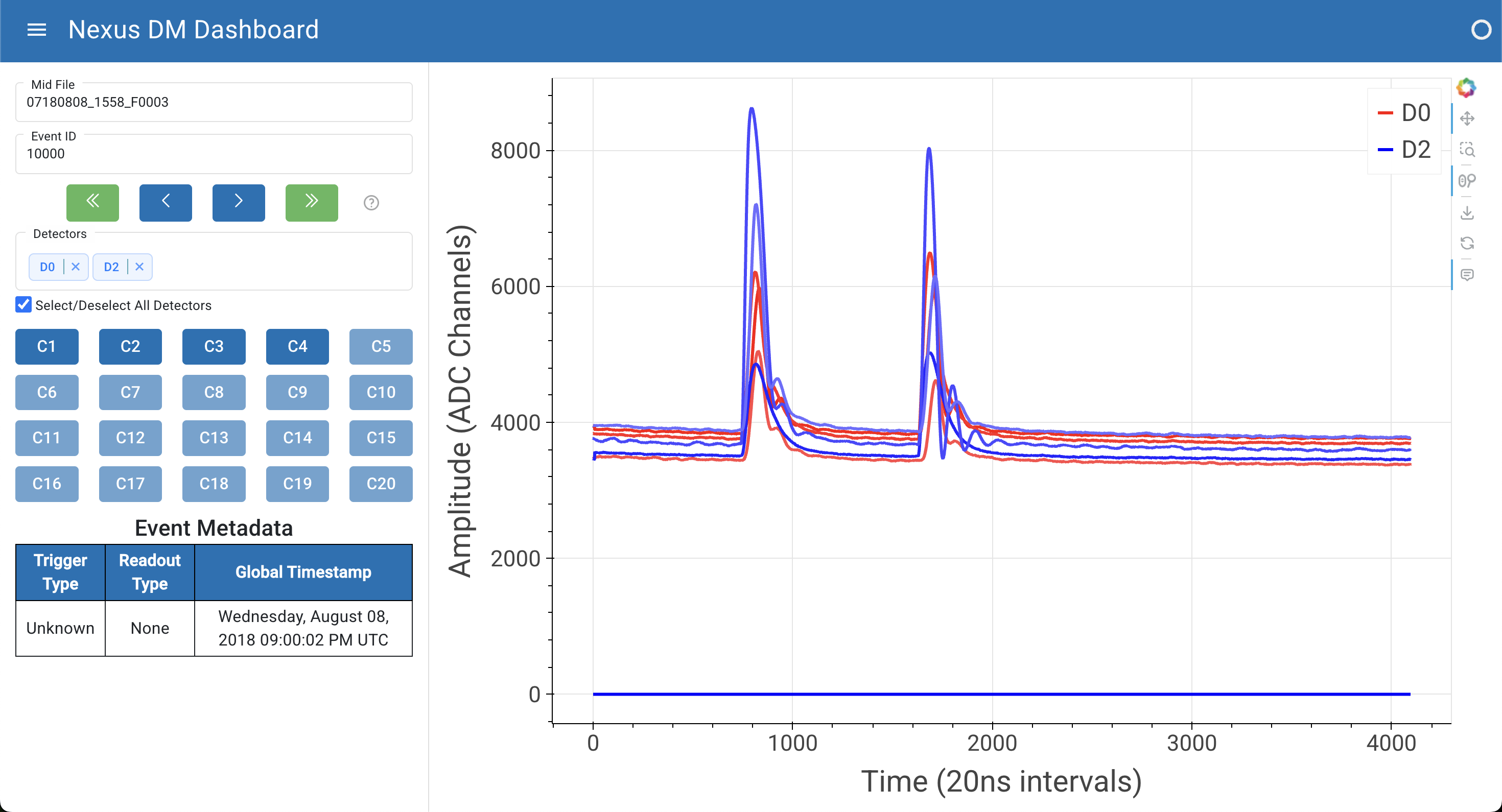

If we take a look at the Nexus-DM dashboard, we see that we have the same result!

Let's render channels from another event, by changing our event id

event_id = cdms.get_event_ids()[1008]

Complete Tutorial Code

from nsdf_dark_matter.idx import load_all_data
import matplotlib.pyplot as plt


def main():
    # specify the path to the dataset you want to use
    cdms = load_all_data('./idx/07180808_1558_F0003')

    event_id = cdms.get_event_ids()[0]
    detector_ids = cdms.get_detectors_by_event(event_id)

    # Extracting all the channel data from each detector
    channel_data = []
    for det in detector_ids:
        channel_data.append(cdms.get_detector_channels(det))

    # Visualizing the pulses
    plt.figure(figsize=(12, 6))
    plt.title(f"Visualizing 07180808_1558_F0003, Event: {event_id}", fontweight="bold")
    plt.xlabel("Time (20ns intervals)")
    plt.ylabel("Amplitude (ADC Channels)")

    cmap = plt.get_cmap('Set1')
    for i, det_channels in enumerate(channel_data):
        for row in range(det_channels.shape[0]):
            label = f"D{detector_ids[i].split('_')[1]}" if row == 0 else None
            plt.plot(det_channels[row], color=cmap(i), label=label)

    plt.legend()
    plt.show()


main()

Completed Visualizing Pulses

Great, we can now visualize all the channels for any event in the dataset!

Wrapping up

In this tutorial, you learned how to:

• Set up a Python environment and install dependencies to analyze dark matter datasets.

• Download datasets using the NSDF CLI.

• Extract channels from events using the NSDF Dark Matter Library.

• Visualize pulses of events using Matplotlib.

With these tools, you can explore and analyze any event in your dataset, compare visualizations across events, and integrate this workflow into larger analysis pipelines. This workflow provides a strong foundation for more advanced processing and analysis such as machine learning workflows.
